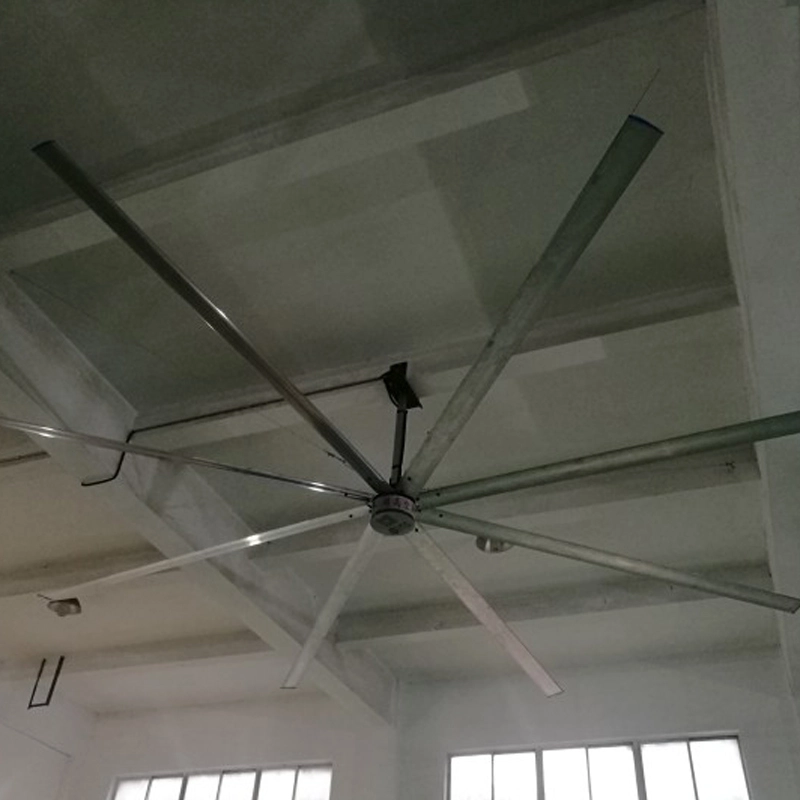

The HVLS 8-blade industrial ceiling fan, compared with similar products on the market, has incomparable outstanding advantages in terms of performance, quality, and appearance, among others, enjoying a good reputation in the market. The blade surface was designed using large-scale fluid mechanics simulation, featuring enhanced wall thickness, high-performance aluminum alloy, electrostatic spray treatment on the surface, and easy cleaning and wear resistance. It works together with the control system to improve the intelligence of fan control.
| Part No# | Name | Power | Air Flow (cfm) | Drive Mode | Blade Size mm |
| YBA073AL08EC | 24FT ceiling fan with 8 blades | 2000 | 560000 | direct | 7300 |
| Item | Parameter/Description |
| Product Name | 24FT/7.3M Ceilling fan |
| Product Model | YBA07306ECA0 |
| Size | 7300mm/24FT |
| Installation | Adaptable to various roof types with different clamps |
| Power | 3Ф/380V/50HZ |
| Max Airflow | 14300m³/min |
| Coverage Area | 1400m² |
| Blade Diameter | 24FT/7.3m |
| Blade Material | 6pcs Alloy |
| Motor | Outer rotor permanent magnet brushless DC motor |
| Rotation Speed | 55r/min(20%-100% speed control) |
| Current | 2.8A |
| Input Power | 1500w |
| Air Volume/W | 9.53m³/min |
| Protection Level | IP55 |
| Noise | ≤36dB |
| Quality Inspection | (1) Fan dynamic balance test (2) Noise test (3) Vibration and rotational concentricity performance test (4) Fan blade speed test (5) Airflow test (6) Overall efficiency test |
The 24FT ceiling fan motor uses a state-of-the-art external rotor permanent magnet synchronous motor, which is silent, reliable, energy-efficient, and requires no maintenance for life.
PMSM motor, bring good heat emission, high efficiency(direct drive), big torque, long-life usage. High strength with ribs to reinforce the Aluminum blade.Maximal air performance, high efficiency, and easy to maintain, and install.
The 6005 aluminum alloy ceiling fan blade ensures air circulation in the work area with its big air volume, low noise, and superb balancing.
A lot of places, like machining shops, gyms, ranch milk halls, etc., use large ceiling fans.
