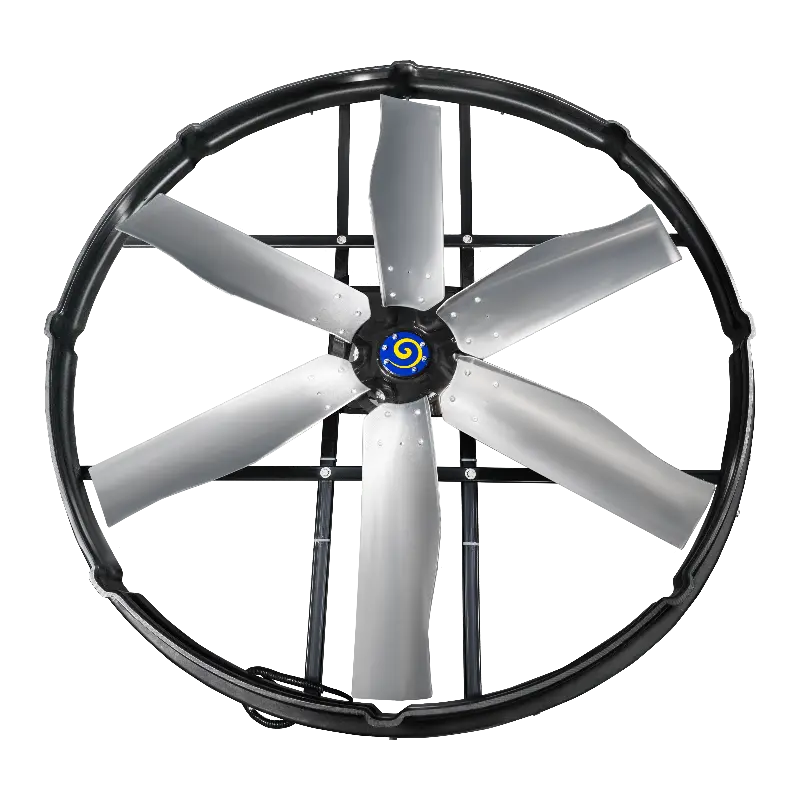

A 72" panel fan is a large, industrial-grade fan designed for efficient air circulation in expansive spaces such as warehouses, barns, or factories. It features a 72-inch diameter blade assembly housed within a panel structure, offering powerful airflow capabilities. This type of fan is ideal for cooling, ventilation, or drying applications, ensuring a comfortable and productive environment.
Item | Parameter/Description |
Product Name | 72’’ Panel fan |
Product Model | YBA072EC |
Frame Size | 2032*2032*387mm（L*W*H/mm）80”*80”*15.2” |
Frame Material | High-strength double-layer PE |
Installation | 60mm pipe installation |
Power | 3Φ/380V/50HZ |
Max Airflow | 120193m³/h |
Air Speed | 6.2m/s- 6m to the fan 4.5m/s-12m to the fan |
Blade Diameter | 72’’/1.83m |
Blade Material | 6pcs Alloy(4mm thickness) |
Blade | riveted in one time, good balance and low noise |
Motor | Outer rotor permanent magnet brushless DC motor |
Rotation Speed | 345r/min(20%-100% speed control) |
Current | 4A |
Input Power | 2000W |
Air Volume/W | 60m³/h |
Protection Level | IP55 |
Noise | ≤70dB |
Quality Inspection | (1) Fan dynamic balance test (2) Noise test (3) Vibration and rotational concentricity performance test (4) Fan blade speed test (5) Airflow test (6) Overall efficiency test |
The 72" panel fan boasts features such as a high-capacity airflow design for efficient space ventilation, durable construction for longevity, energy-efficient motors to reduce operating costs, variable speed settings for customizable airflow, easy installation mechanisms, and low noise operation for minimal disturbance. It’s designed for industrial or agricultural settings requiring large-scale air movement.
Can be equipped with the Terui Internet of Things APP system
Insulated and Rust-Free Housing
Outer rotor permanent magnet brushless DC motor
Full alloy fan blades ensure the strength of the blades while providing strong and uniform airflow
Designed with guide vanes based on fluid dynamics principles, the angle of the airflow can be adjusted as needed to cover a larger and farther area with fresh air
During the winter, the fan operates at the lowest speed, which not only enhances air circulation inside the barn but also effectively reduces air humidity. This contributes to achieving balanced heat distribution inside the barn, maintaining the optimal temperature and humidity in the cattle shed environment
