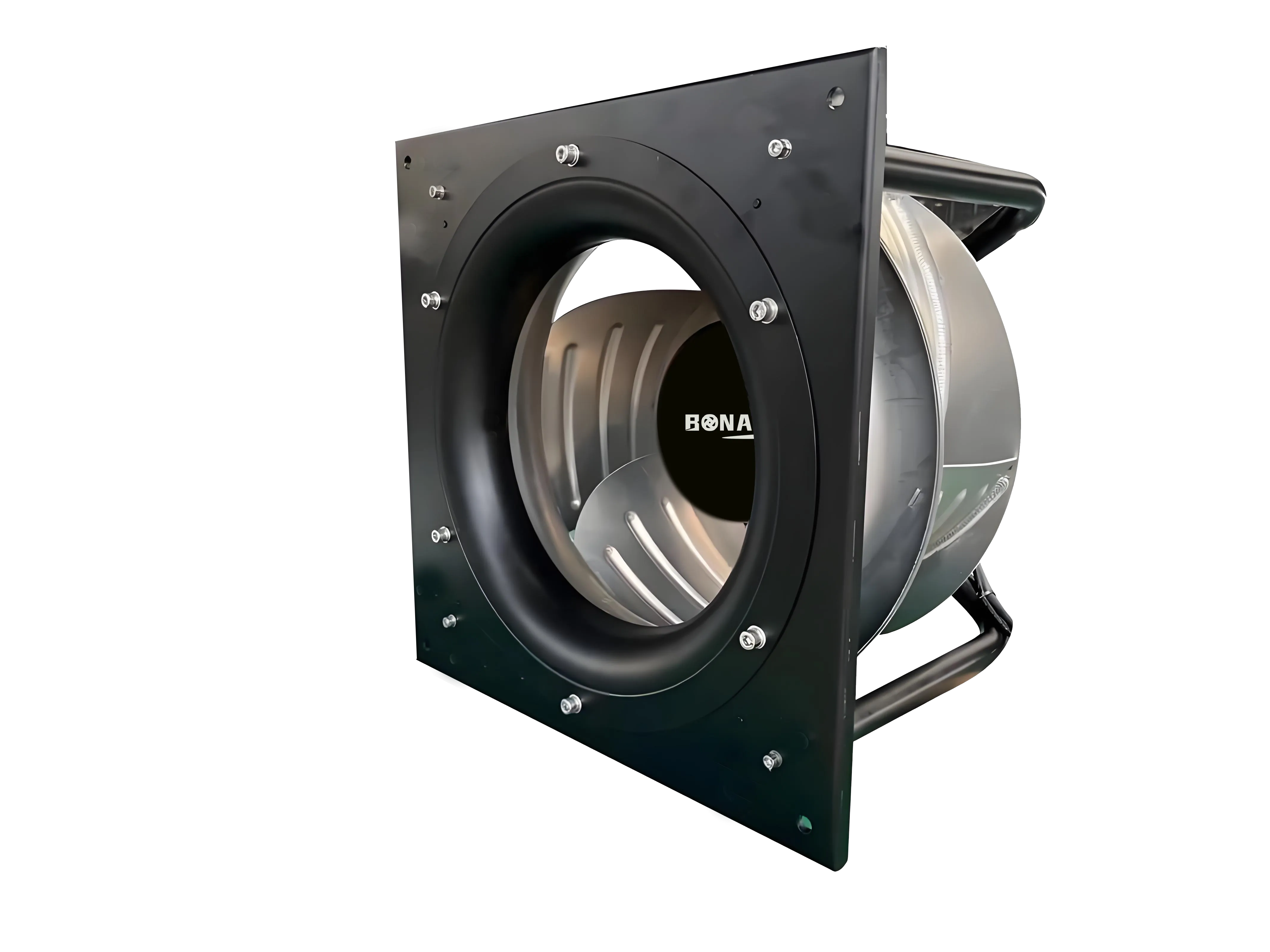

Terrui Centrifugal Fan

Name: Centrifugal Fan
Brand: Shanghai Terrui International Trade Co., Ltd.
Price: 100 USD

Our external rotor EC centrifugalfans feature versatile forward- or backward-curved impellers, delivering powerful,efficient,and quiet performance. By integrating the motor into the impeller, we ensure optimal coolingand a compact design. With built-in control and monitoring modules, these fans offer easymaintenance and reliable operation for diverse industrial and commercial applications-makingthem the ideal choice for ventilation,cooling, and air circulation systems.

Contact

Products

Technical Specifications Of Centrifugal Fan

Centrifugal Fan
Technical Data P/N	Power (W/HP)	Air Flow(CFM)	Speed (RPM)
BNW250ECPRO-M1	750W/1HP	765	3300
BNW28OECPRO-M1	1150W/1.5HP	1575	3250
BNW310ECPRO-M1	1800W/2.4HP	2490	3000
BNW355ECPRO-M1	1920W/2.6HP	2900	2850
BNW40OECPRO-M1	2300W/3.1HP	4140	2400
BNW450ECPRO-M1	2470W/3.3HP	8420	2200
BNW5OOECPRO-M1	3300W/4.4HP	9305	1900
BNW56OECPRO-M1	3600W/4.8HP	11478	1540
BNW63OECPRO-M1	4230W/5.7HP	13420	1400

Features Of Centrifugal Fan

tHigh-Efficiency Backward-Curved Centrifugal Fan Module employs advanced ECmotor control technology and aerodynamic simulation design, combined with innovativematerials and precision engineering,to consistently optimize system efficiency, significantlyreducing energy consumption and operational costs. Equipped with configurable controlinterfaces supporting both analog and digital signal inputs,it automatically adjusts airflowbased on building occupancy and usage density, while seamlessly integrating with buildingautomation systems for intelligent monitoring and energy efficiency optimization.The fan modules can be assembled into multi-unit air walls. Their modular structure enablesflexible and convenient installation, greatly saving installation time and labor costs, whileimproving overall airflow uniformity and reducing operational noise.
