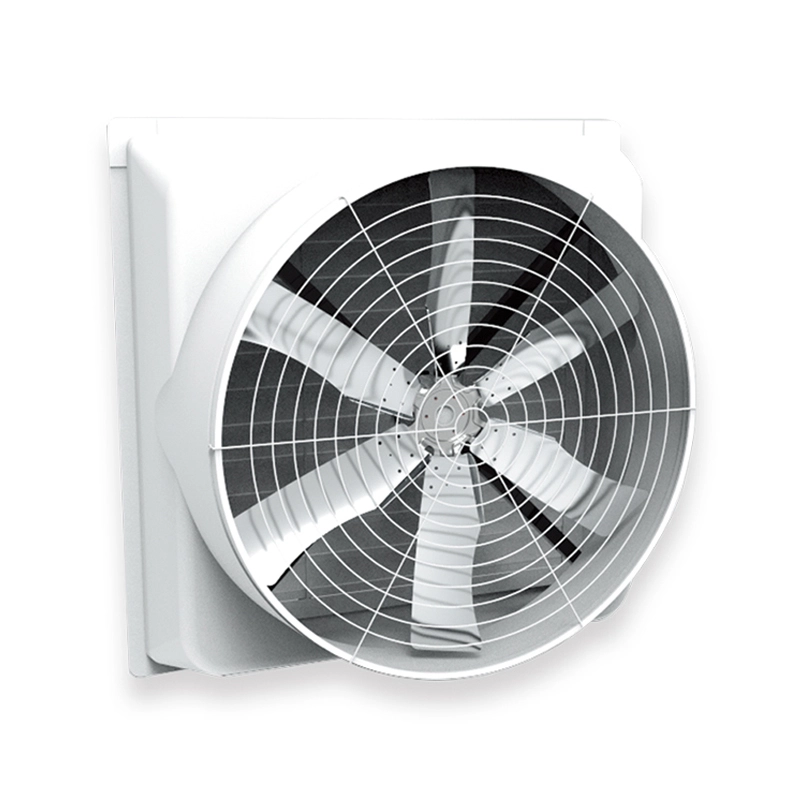

48'' Exhaust Fan

Introducing our 48" Exhaust Fan, designed to efficiently ventilate and remove unwanted odors in medium to large spaces. With its durable construction and high-powered motor, this fan is ideal for commercial public places, workshops, dairy pastures, and industrial facilities. The blade is made of aluminum alloy, ensuring a seamless molding process that results in excellent balance, high air volume, and minimal noise levels. This creates a comfortable and healthy environment for you.

Technical Specifications of 48'' Exhaust Fan

Product Name48"/1.2M REFINE Circulation fan
Product ModelYDA048DECKA0
Frame Size1460*1460*580mm (L*W*H/mm) 57.4"*57.4"*22.8"
Frame MaterialHigh-strength fiberglass
InstallationScrew to the frame on the Wall
Max Airflow48000m³/h
Blade Diameter48''/1.22m
Blade Material6pcs Alloy(3mm thickness)
Bladeriveted in one time, good balance and low noise
MotorOuter rotor permanent magnet brushless DC motor
Rotation Speed450r/min(20%-100% speed control)
Input Power850w
Air Volume/W56.4m³/h
Protection LevelIP55
Quality Inspection

(1) Fan dynamic balance test

(2) Noise test

(3) Vibration and rotational concentricity performance test

(4) Fan blade speed test

(5) Airflow test

(6) Overall efficiency test

Features of 48'' Exhaust Fan

  • Permanent magnet synchronous motor, good heat dissipation, high efficiency (direct drive), large torque and long service life.

  • Aluminum alloy fan blade, good balance, large air volume, low sound, will not cause an environmental stress reaction.

  • The fan comes with a controller, which can be controlled by APP. The PC automatically adjusts the temperature and humidity.

  • The housing is made of heavy-duty, impact-resistant polyethylene. A rotoplastic process, making the shell stronger, longer service life, and never rust.

  • The fan is widely used, and suitable for any, factory, workshop, or pasture.
