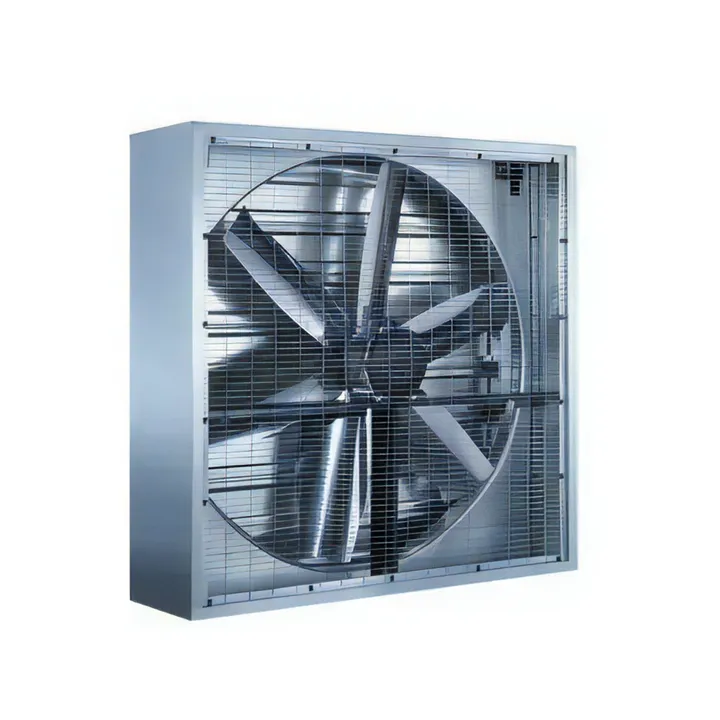

Terrui 98-Inch Industrial Wall Fan

Name: 98-Inch Industrial Wall Fan
Brand: Shanghai Terrui International Trade Co., Ltd.
Price: 100 USD

Terrui 98” Heavy-Duty Fiberglass Exhaust Fan: Ultimate Negative Pressure Ventilation for Sprawling Industrial Facilities

When standard industrial fans can't keep up with the heat, moisture, or stale air in a massive facility, the Terrui 98-inch industrial exhaust fan steps in to deliver ventilation at a massive scale. As detailed in image_3f2bf7.png, this wall-mounted ventilation giant moves a staggering 230,000 m³/h (135,200 CFM) of air. It is an absolute powerhouse designed specifically for large-scale factory floors, assembly plants, and heavy industrial warehouses. We constructed the heavy-duty outer shell from high-strength fiberglass to withstand tough environments, and chose an advanced outer rotor permanent magnet brushless DC (PMDC) motor to run the system. Pulling 5500W while maintaining an efficiency of 41.8 m³/h per Watt, this negative pressure fan continuously clears out contaminated air and pulls fresh air through your workshop without sending your power bills through the roof.

Contact

Products

Technical Specifications of 98-Inch Industrial Exhaust Fan

Input Power	5500w
Power	3PH/380-480V/50-60HZ
Max Airflow	230000m³/h (13500CFM)
Blade Material	6pcs Alloy(4mm thickness)
Rotation Speed	305r/min
Noise Level	≤72dB
Certification	CE / ISO9001

Unmatched Negative Pressure Performance: Pushes out an incredible 135,200 CFM of air at a steady 305 r/min. This high-volume output creates a powerful negative pressure effect, ideal for rapidly flushing heat, dust, and fumes out of expansive industrial production zones.
Direct-Drive PMDC Motor Tech: Driven by a premium outer rotor brushless DC motor. Because it's a direct-drive system, there are no belts or pulleys to wear out, meaning significantly less routine maintenance for your facility team, better torque, and a longer overall lifespan.
High-Strength Fiberglass Housing: The massive $113" \times 113" \times 28.7"$ frame is built from high-strength fiberglass. This specialized structural enclosure is selected to handle continuous industrial use and resist environmental wear where standard metal frames might degrade.
Heavy-Gauge Alloy Blades: Features 6 thick alloy blades (4mm thickness) riveted solid in a single step. They are built to hold their shape under intense static pressure, ensuring excellent dynamic balance, smooth operation, and noise levels kept at or below 72 dB.
Streamlined Installation & Quality Guarantee: To make setup easier for your plant engineers, heavy-duty eye bolts come pre-installed right on the frame. On top of that, every unit passes our strict 23-step factory inspection—comprehensively testing balance, vibration, noise, and airflow before it ever ships.
