Terrui LoRa Monitoring Unit

Name: LoRa Monitoring Unit
Brand: Shanghai Terrui International Trade Co., Ltd.
Price: 100 USD

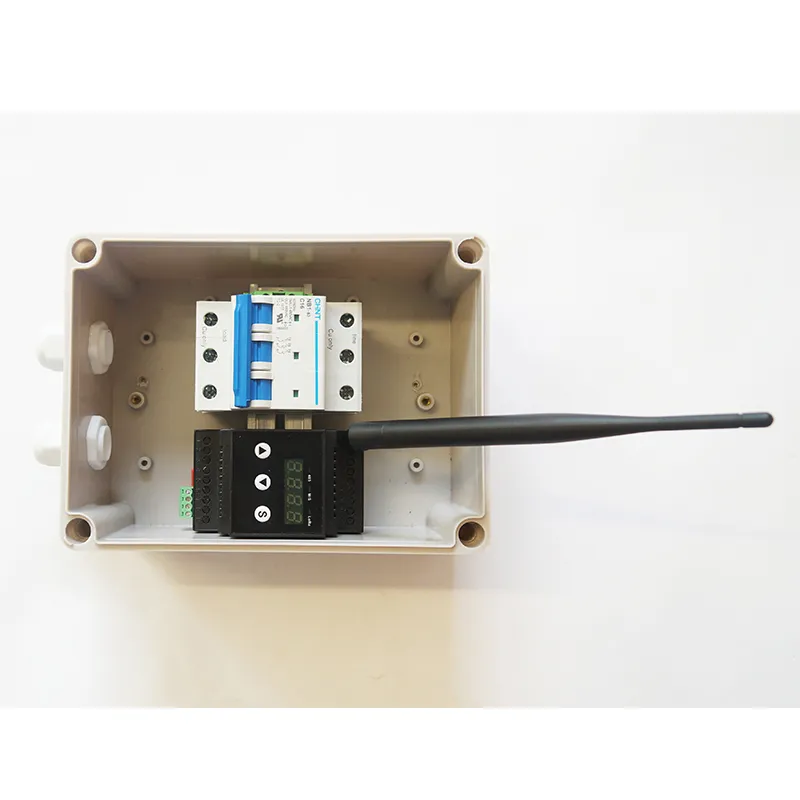

The LoRa Monitoring Unit sits at the fan end of the system. It bridges RS485 and the LoRa wireless link, so a fan with a drive can join the IOT System without a long cable run back to the controller. Each unit works as master or slave: one master unit links to the control side, while slave units are installed with the fans, typically inside the fan electrical box. A digital display and three keys are used to set the channel, address and transmit power on site; the settings are kept after power loss. Three status lights show the state of the RS485 link, the master/slave mode and the wireless link, so a communication problem can be traced to one end without test equipment.

Contact

Products

Features of LoRa Monitoring Unit

RS485 to LoRa bridging for fans that are far from the controller or hard to reach with cable
Master / slave pairing; all units on one channel use the same channel number, addresses stay unique within the channel
Around 20 slave units per channel in default settings (channel capacity is configurable)
Channel, frequency and transmit power set locally with three keys; settings survive power loss
In slave mode the display reads live drive data — actual speed, temperature, voltage, power, current and fault codes — for on-site checks
Compact unit sized to fit inside fan electrical boxes; enclosure options available
