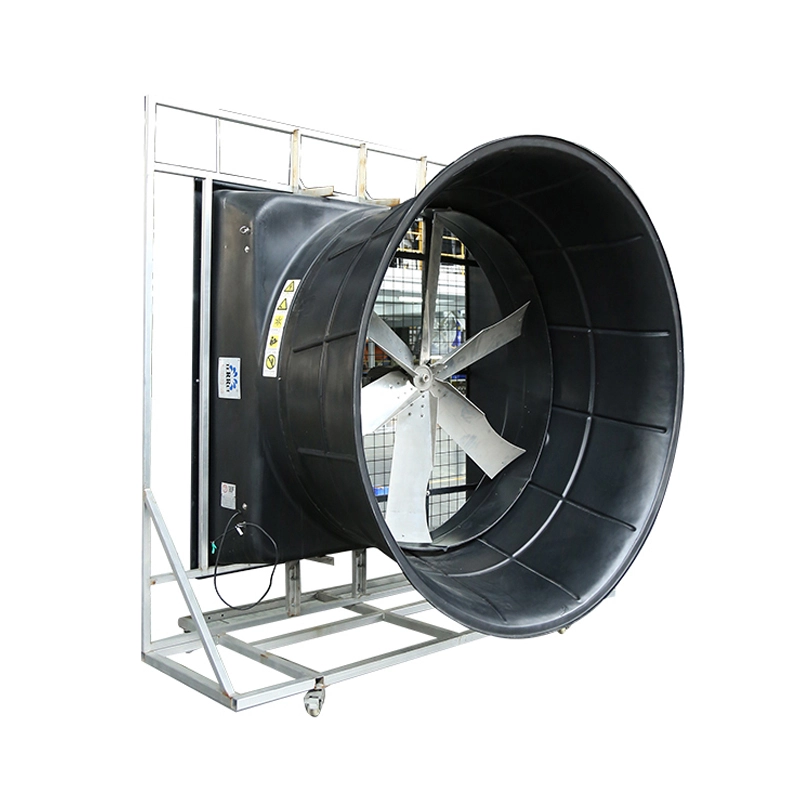

72'' Exhaust Fan

The introduction of a powerful 72" Exhaust Fan is designed to effectively remove dirty air and odors from any large space, improving indoor air quality. With its industrial-grade construction and high-performance motor, the fan is ideal for dairy pastures, barns, and other commercial applications. At the same time, the 72" Exhaust Fan realizes the intelligent remote control of the mobile phone APP with the help of the Internet software system developed by the company. As a result, our exhaust fans are the perfect solution for any space.

Technical Specifications of 72'' Exhaust Fan

Product Name72"/1.83M REFINE Circulation fan
Product ModelYDA072DECGS
Frame Size2185*2185*885mm (L*W*H/mm)86"*86"*34.8"
Frame MaterialHigh-strength double-layer PE
InstallationEye bolts are pre-installed for chains
Max Airflow120200m³/h
Air Speed6.2m/s- 6m to the fan   4.5m/s-12m to the fan
Blade Diameter72''/1.83m
Blade Material6pcs Alloy(4mm thickness)
Bladeriveted in one time, good balance and low noise
MotorOuter rotor permanent magnet brushless DC motor
Rotation Speed345r/min(20%-100% speed control)
Input Power2000w
Air Volume/W60m³/h
Protection LevelIP55
Quality Inspection

(1) Fan dynamic balance test

(2) Noise test

(3) Vibration and rotational concentricity performance test

(4) Fan blade speed test

(5) Airflow test

(6) Overall efficiency test

Features of 72'' Exhaust Fan

  • Permanent magnet synchronous motor: excellent torque, reached service life, excellent heat dissipation, high efficiency (direct drive).

  • Aluminum alloy fan blade that is well-balanced, has a high air volume, produces less noise, and won't stress the environment.

  • An app may be used to control the controller that comes with the fan. The PC automatically modifies the humidity and temperature.

  • The housing is composed of robust polyethylene that resists impact. a rotoplastic procedure that strengthens, extends the life of, and prevents rusting the shell.

  • The fan can be utilized in any industry, workshop, or pasture and is widely employed.
