Combating Ammonia Corrosion and High-Pressure Washdown: Material Mechanics of Double-Layer PE and IP55 Ratings

Summary

Barn air is flat-out brutal on machinery. Manure fumes—loaded with ammonia and hydrogen sulfide—mix with constant humidity to trigger fast chemical rust on standard sheet-metal fan frames. Throw in mandatory high-pressure washdowns with harsh cleaning chemical soaps, and old-style metal fans start warping, rusting out, and shorting motors in no time. Stopping these costly breakdowns means rethinking how barn ventilation gets built from the ground up.

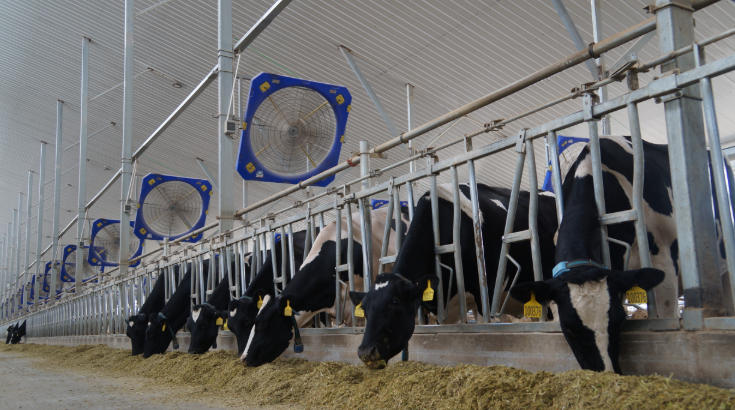

Swapping out rusty metal boxes for a 【38-inch panel fan】 fixes these structural failure points for good. By pairing a double-layer polyethylene plastic shell with a fully sealed IP55 motor housing, this cooling fan design uses chemically inert polymers to avoid the corrosion risks associated with conventional metal housings. Multi-stage seals across the outer-rotor motor assembly keep the box square, block chemical rust, and guarantee smooth operation even during intense pressure-washer cleanups.

What

Let's talk specs on this 【38-inch heavy-dutypanel fan】. Built to handle harsh livestock environments, the whole unit sits inside a 1140 x 1140 x 300 mm double-wall PE box with pre-drilled holes for easy mounting on barn walls. Inside, four 1mm-thick 304 stainless steel blades mount right onto an outer-rotor permanent magnet brushless DC motor.

Wired for standard 380V–480V three-phase farm power, 【this direct-drive panel fan】 pulls just 410W (1A current) while moving up to 27,000 m³/h  of raw air at 750 r/min. Rated IP55 against water spray and fine barn dust, and backed by a 23-step factory quality check, this fan handles toxic barn fumes and direct power-washer spray without breaking down.

Why

Rust inside livestock housing follows a fast, aggressive path. Wet barn air packed with ammonia leaves an alkaline film across metal housing. On cheap galvanized fans, that chemical film strips away zinc coatings and pits the carbon steel underneath. Before long, frames warp out of shape, messing up blade clearance around the box. That wobble creates bad vibration, cuts air volume, and leads to complete frame failure.

On top of that, routine barn sanitation relies on pressure washers that easily blow right past weak motor gaskets, shorting windings and ruining bearings. Upgrading to 【a polymer panel fan】solves both headaches at once. Polyethylene plastic simply cannot react to manure fumes or washdown soaps, while an IP55 seal keeps internal motor coils and bearings isolated from high-pressure water streams and thick barn dust.

How

Polyethylene Material Mechanics and Double-Wall Structural Rigidity

The outer housing of this 38-inch panel fan uses high-density linear polyethylene—a plastic famous for high stress-crack resistance and zero reaction to manure emissions. The hollow double-layer wall structure offers much better structural stiffness than thin sheet metal. This double-wall box absorbs bumps, holds up under heavy negative pressure without flexing, and stops stress cracks caused by huge temperature swings between hot summer days and freezing winter nights.

IP55 Ingress Protection and Sealed Outer-Rotor Architecture

The outer-rotor PMBLDC motor is completely enclosed inside a finned aluminum alloy shell that meets strict IP55 protection standards. The first digit  guarantees full protection against dust accumulation inside electrical parts. The second digit means the motor stands up to direct low-pressure water jets sprayed from any angle. Dynamic shaft seals, static O-rings, and waterproof cable glands ensure pressure-washer water never gets into the motor cavity or ruins internal magnets.

Metallurgical Integrity of 304 Stainless Steel Blades

Working alongside the plastic box, the blade set uses 304 austenitic stainless steel packed with chromium and nickel alloys. Stamped and riveted in a single factory step, the 1mm blades resist surface pitting, rust flaking, and stress cracks. The physical stiffness of 304 stainless stops blade flex under heavy air resistance, keeping true dynamic balance during continuous 750 r/min operation.

FAQ

Why is double-layer PE superior to galvanized steel in livestock barn environments?

Polyethylene is non-metallic and chemically inert, meaning it cannot rust, pit, or react with ammonia, hydrogen sulfide, or moisture. The double-layer wall structure adds geometric stiffness, keeping the frame square even under strong negative pressure.

What does the IP55 rating mean for daily barn maintenance?

IP55 certification guarantees that the fan motor and electrical connection interfaces are completely dust-protected and safe against direct low-pressure water streams from any direction, letting barn workers pressure-wash walls without damaging fan electronics.

How does the outer-rotor PMBLDC motor dissipate heat if it is fully sealed to IP55 standards?

The motor uses a high-efficiency finned aluminum housing that works as a thermal radiator. High-velocity air generated by the spinning blades continuously sweeps over the motor housing, providing rapid convective cooling without needing open vent holes.

Will the PE housing degrade or crack when exposed to extreme temperature variations?

No. High-strength LLDPE plastic mixes include UV stabilizers and anti-aging additives that preserve flex and tensile strength across wide temperature swings, preventing brittle fractures or stress cracks.

What are the operational electrical parameters for this model?

The YBA002EC model operates on a 380V–480V 3-phase supply at 50/60Hz, drawing a low nominal current of 1A with a maximum input power of 410W.

Does the single-rivet stainless blade design resist mechanical fatigue?

Yes. The 1mm 304 stainless steel blades are stamped and riveted in a single precision operation, eliminating stress concentration points and maintaining precise dynamic balance to stop vibration-induced metal fatigue.

Conclusion

Keeping barn ventilation running reliably for years comes down to choosing livestock equipment engineered specifically for harsh chemical and wet environments. Installing an IP55 double-layer PE panel fan is one of the smartest upgrades you can make for your facility.

By replacing rust-prone sheet metal with tough polyethylene and sealing the motor inside an IP55 housing, this fan eliminates the double threat of ammonia rust and washdown water damage. Pushing 27,000 m³/h of fresh air on just 410W, backed by 304 stainless blades and a 23-step quality inspection, it gives you dependable performance year after year.
