Electrical Resilience in High-Pressure Fans: Voltage Adaptation and Current Limiting

Create Time: 04 ,16 ,2026

Table of Content [Hide]

In industrial environments, electrical stress is the leading cause of premature motor failure. For systems running in data centers or cleanrooms, the "static pressure trap"—where clogged filters cause unpredictable load fluctuations—can lead to insulation breakdown and motor burnout. Terrui EC centrifugal fans address these risks through integrated protection logic and high-tolerance hardware.

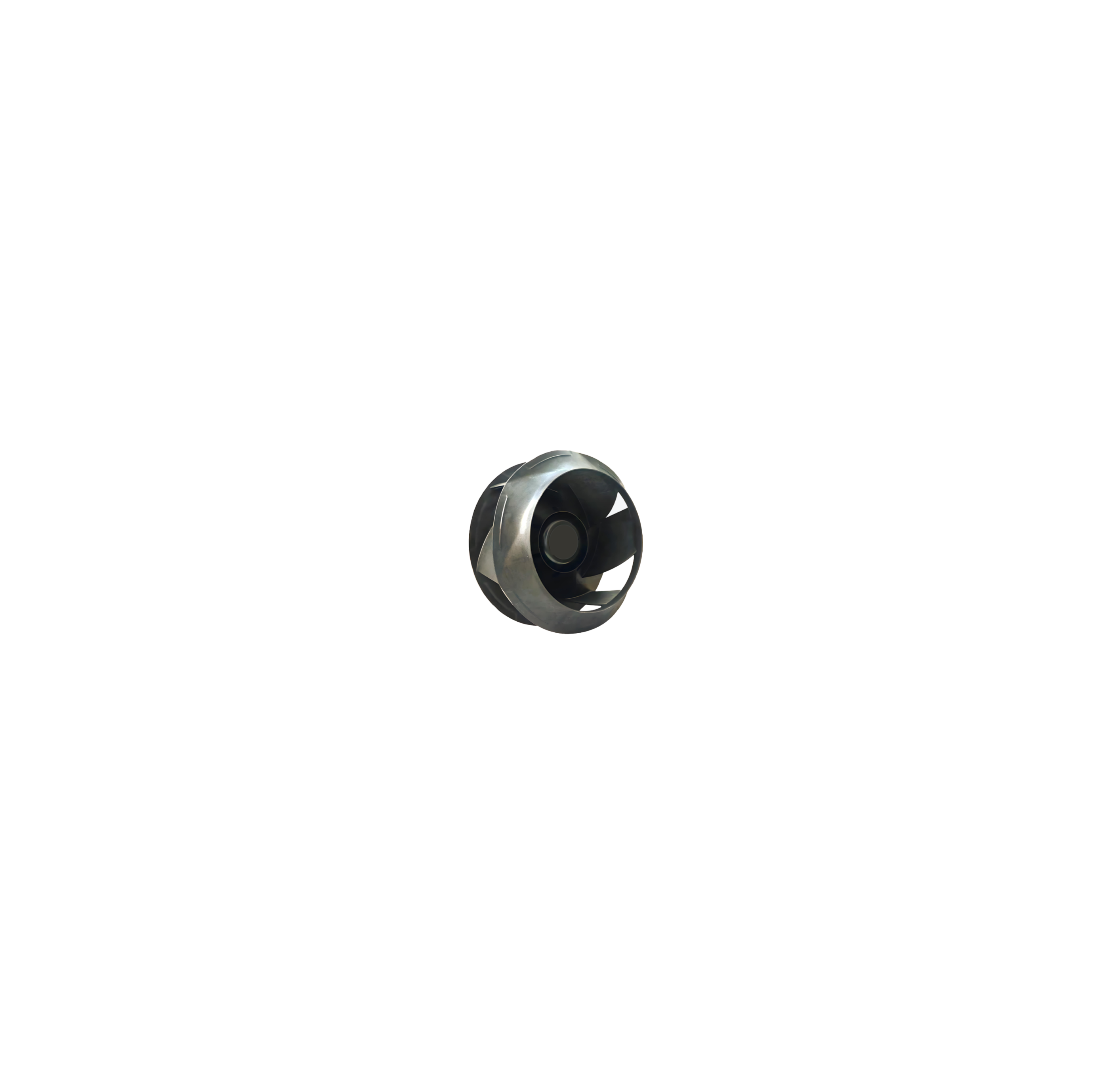

High-efficiency PMSM motor used in Terrui centrifugal fans for 30 percent energy savings

Global Grid Adaptation: 200V to 480V

Industrial power supplies are rarely stable. To ensure global compatibility and resilience against grid fluctuations, Terrui fans support a broad input range: Single-Phase (1PH) 200-240V and Three-Phase (3PH) 380-480V at 50/60Hz.

Beyond global compatibility, this wide voltage tolerance facilitates active circuit protection. If input voltage exceeds the motor's safe operating threshold, the integrated controller automatically adjusts output or triggers a safe shutdown. By neutralizing surge-related damage at the source, this voltage-aware logic provides the hardware reliability required for our three-year electrical warranty.

Accurate Current Control (1.5A to 2.8A)

The most important indicator of motor longevity is amperage. If the system resistance in a typical AC fan suddenly reduces, the motor may try to draw too much current, which could cause the fan to overheat quickly.

Terrui EC centrifugal fans utilize active current monitoring to prevent this thermal runaway. Depending on the model, our industrial units operate within precise windows—typically 1.5A to 2.8A. The controller enforces a hard current limit; even if a 10V PWM signal calls for maximum RPM, the motor will not exceed its rated amperage. This ensures the unit always operates within its thermal design envelope, even under "worst-case" aerodynamic loads.

Overcoming the "Static Pressure Trap"

High-resistance environments—such as those with HEPA filters or complex ducting—often push fans to their mechanical limits. Terrui's backward-curved impellers feature a non-overloading characteristic. As static pressure increases, the power demand reaches a peak and then levels off, rather than climbing indefinitely.

This enables the fan to maintain steady airflow without taxing electrical components when combined with our Permanent Magnet Synchronous Motor (PMSM) technology.Even at high resistance, these fans operate with high efficiency and noise levels as low as ≤ 36 DBA.

Closed-Loop Control Logic

Terrui's stepless speed control utilizes standard 0-10V or PWM signals for granular airflow adjustment. The "closed-loop" logic within the controller constantly calculates optimal torque and speed based on real-time feedback.

For applications like data center cooling, where temperature spikes necessitate quick correction, this responsiveness is essential. The fan maintains optimal efficiency while offering the data transparency required for contemporary predictive maintenance by responding in milliseconds to variations in load or signal.
