Maintaining Constant Airflow: Solving the Filter Loading Problem

Create Time: 04 ,15 ,2026

Table of Content [Hide]

In industrial filtration and cleanroom systems, the most common performance failure is Filter Loading. As filters trap dust, system resistance (static pressure) climbs. With a standard AC fan, this causes airflow (CFM) to drop sharply, leading to hazardous fume buildup or compromised air quality.

Automated Compensation via Constant Airflow Logic

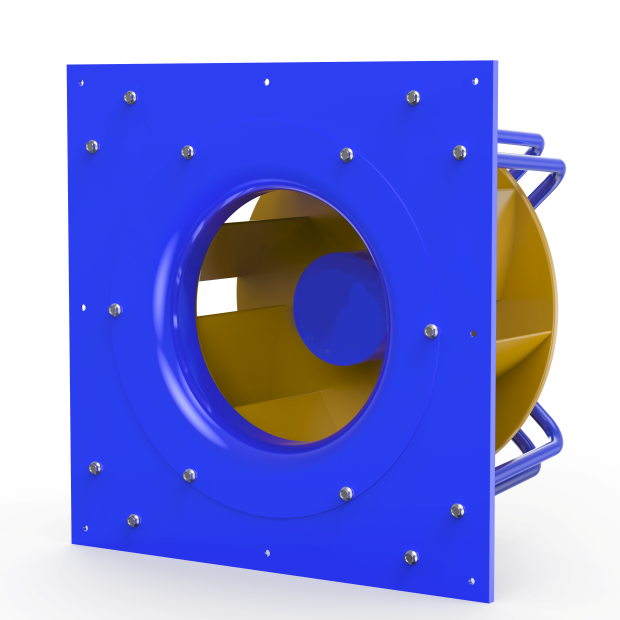

Terrui EC Centrifugal fans address this through a built-in self-regulating algorithm. Instead of relying on manual adjustments, the controller uses Hall sensors and back-EMF feedback from the permanent magnet motor to track torque and RPM in real-time.

When the system detects a spike in static pressure, the controller automatically calculates and applies the necessary RPM increase to maintain a steady air volume. While the fans support 0-10VDC/PWM input, the Tacho Output (Speed Feedback Signal) is critical for remote monitoring. It allows your PLC to verify that the fan is actually hitting the required speed to overcome the filter's resistance.

Close-up of Terrui industrial centrifugal fan motor showing IP54 protection and Class F insulation for harsh environments

Hardware Built for Continuous Pressure

Software is only half the battle; the hardware must survive the increased workload. These centrifugal fans are engineered to heavy-duty industrial standards:

IP54 Protection: The EC electronics are fully sealed to prevent damage from the fine dust particles common in grinding or chemical processing.

S1 Duty Cycle & Class F Insulation: These units are rated for continuous 24/7 operation under full load. They are built for rigorous industrial cycles, not intermittent use.

G2.5 Dynamic Balance: Ramping up RPM to compensate for a dirty filter can cause destructive vibration. Our impellers are balanced to G2.5 to ensure smooth operation even at the upper limits of the performance curve.

Thermal Headroom for High-Load Scenarios

These fans maintain stable performance across a wide temperature range of -25°C to +60°C. This thermal headroom is vital when the motor is working harder to pull air through a restricted system, ensuring the internal electronics remain cool even during aggressive pressure compensation.
